Permanent Mold Casting vs. Sand Casting: Which is Right for Your Project?

Sand casting and permanent mold casting are the two primary methods for producing aluminum castings. Both are capable, proven processes, and LeClaire Manufacturing offers both. But they are not interchangeable. The right choice depends on your part geometry, production volume, mechanical requirements, budget, and timeline.

This guide walks through how each process works, where each one excels, and the key factors to weigh when deciding between them.

How Each Process Works

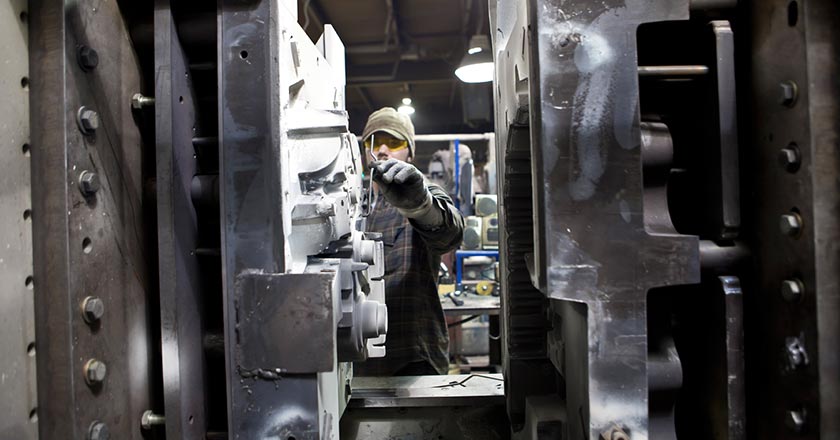

Sand Casting

Sand casting uses a mold made from tightly packed, bonded sand formed around a pattern. Once the mold is prepared, molten aluminum is poured in through one or more runners. After the metal cools and solidifies, the sand mold is broken away to release the finished part. A new mold is made for each pour.

At LeClaire, green sand casting is highly automated. Automatic molding machines pneumatically blow and hydraulically compact the sand around the pattern, and robotic ladling systems pour the metal. This level of process control delivers consistent, porosity-free castings at scale, even for complex geometries involving multi-piece core assemblies.

Permanent Mold Casting

Permanent mold casting uses a reusable metal mold, most often made from iron or steel, rather than breaking down the mold after each cycle. The mold is preheated, any cores are inserted, and molten aluminum is poured in through sprues. Once the part cools, the mold halves separate and the part is ejected. The same mold can be used for tens of thousands of cycles.

LeClaire uses automatic-tilt permanent mold machines with tilt time regulators and thermocouplers to maintain consistent metal and die temperatures throughout production, ensuring the process is repeatable from the first part to the last.

Key Differences at a Glance

The table below summarizes the primary differences between the two processes across the factors that matter most to buyers.

Where Sand Casting Excels

Lower Tooling Cost and Faster Tooling Lead Times

Sand casting patterns are less expensive to produce than permanent metal molds. For buyers who need a new casting quickly, sand casting can get a prototype or first-production part in hand faster. This also makes sand casting the lower-risk option when designs are still being refined.

Low to Medium Production Volumes

Because a new mold is made for each cycle, sand casting does not benefit from the per-unit cost reductions that come with reusing a permanent mold over thousands of cycles. For lower volume runs, however, the lower upfront tooling cost makes sand casting the more economical choice overall.

Complex Geometry and Large Parts

Sand casting accommodates a wide range of part sizes, including large castings that fall outside the practical range of permanent mold. It also handles highly complex internal geometries well, since sand cores can be incorporated into the mold to create internal passages and hollows. LeClaire produces core assemblies of up to 18 pieces for intricate casting designs.

Prototyping and Design Flexibility

When design changes are anticipated, sand casting is the more practical option. Pattern modifications are faster and less expensive than retooling a permanent metal mold, which makes sand casting well-suited to prototyping and early-stage production.

Where Permanent Mold Casting Excels

Higher Mechanical Strength

The faster solidification rate in a steel or iron mold produces a finer grain structure than sand. This translates to approximately 15% higher mechanical properties compared to sand casting in the same alloy. For OEMs converting iron or steel components to lighter aluminum, permanent mold casting often provides the strength needed to make that transition.

Tighter Dimensional Tolerances

Permanent molds hold tighter tolerances than sand. When your part requires precise fit, close mating surfaces, or minimal post-cast machining, permanent mold casting reduces the downstream work required to hit your final dimensional specifications.

Smoother Surface Finish

The steel or iron mold surface produces a smoother as-cast finish than sand. For parts where cosmetic appearance matters or where surface prep costs need to be minimized, permanent mold casting has a clear advantage.

Medium to High Production Volumes

A permanent mold can last for more than 50,000 cycles. Spread over a high-volume production run, the higher upfront tooling investment becomes cost-effective. The more parts you run from the same mold, the lower your per-unit tooling cost.

How to Choose Between the Two Processes

There is no universal answer. The right process depends on your specific project requirements. Here are the questions worth asking:

• What is your expected production volume? Lower volumes tend to favor sand casting; higher volumes favor permanent mold.
• How tight are your dimensional tolerances? If your part requires close tolerances or a smooth as-cast finish, permanent mold is the stronger candidate.
• How complex is the geometry? Highly complex internal features with multi-piece cores often work best in sand. Permanent mold handles complexity well but has practical limits on internal features.
• What are the mechanical property requirements? If your application demands higher strength, permanent mold has the edge.
• Is the design finalized? If changes are likely, sand casting gives you more flexibility to adapt without retooling a metal mold.
• What is your budget and timeline for tooling? Sand casting gets you to first part faster and at lower upfront cost.

LeClaire Manufacturing Offers Both

LeClaire Manufacturing is one of the few single-source aluminum casting suppliers that offers both sand casting and permanent mold casting under one roof. That means you can work with one engineering team, one set of tooling relationships, and one accountable production partner regardless of which process fits your part.

Our engineers review your casting design at the quoting stage and will recommend the process that best fits your requirements for strength, tolerances, volume, and cost. We also run full solidification modeling on all new tooling for both processes, which identifies potential defects before a pattern or mold is ever made. Whether you know which process you need or you want a recommendation, we are ready to help.
